CycloLift

Streamline Railcar and Truck Unloading

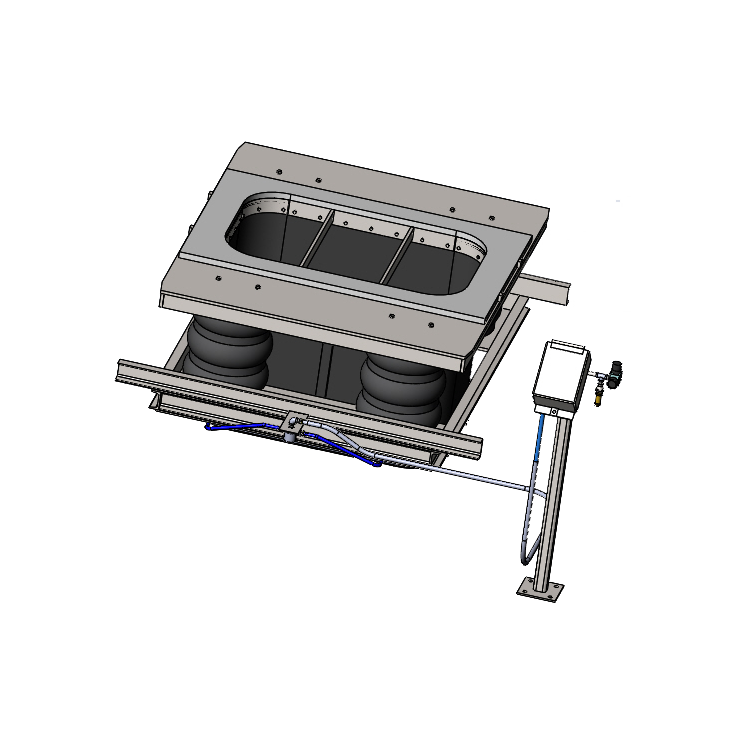

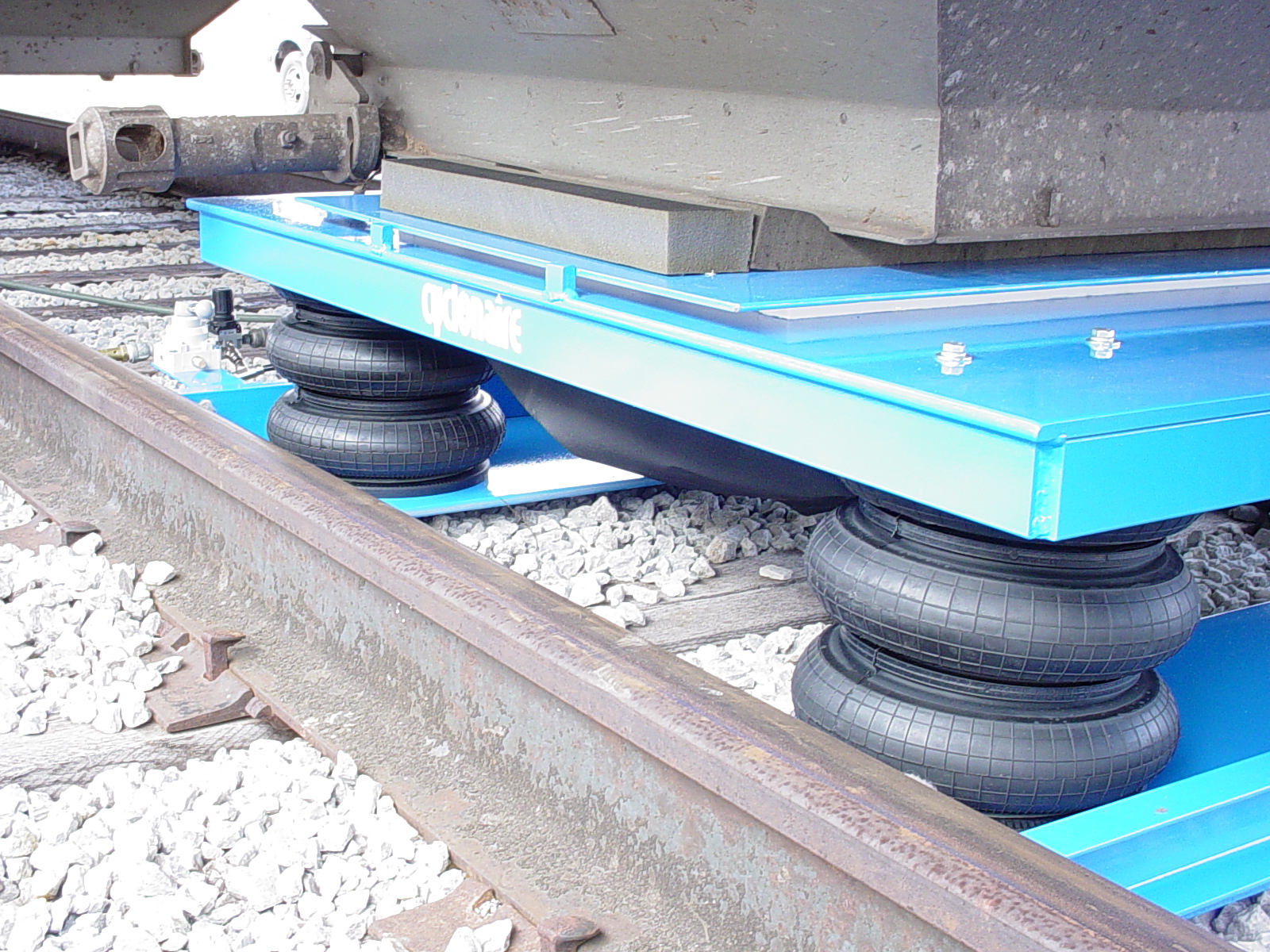

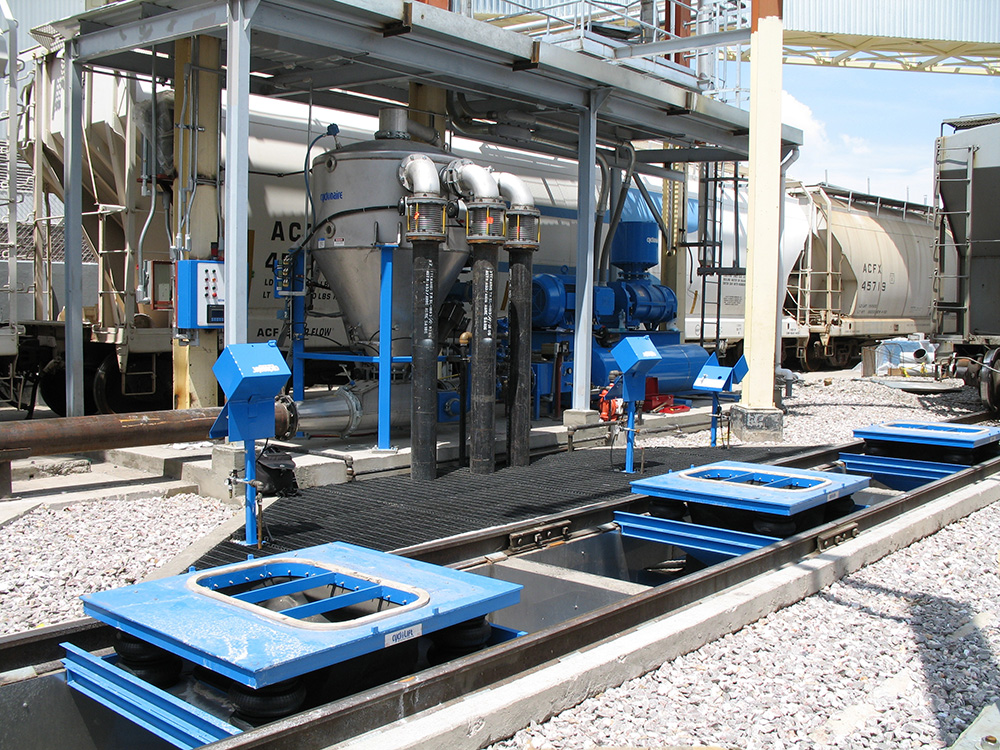

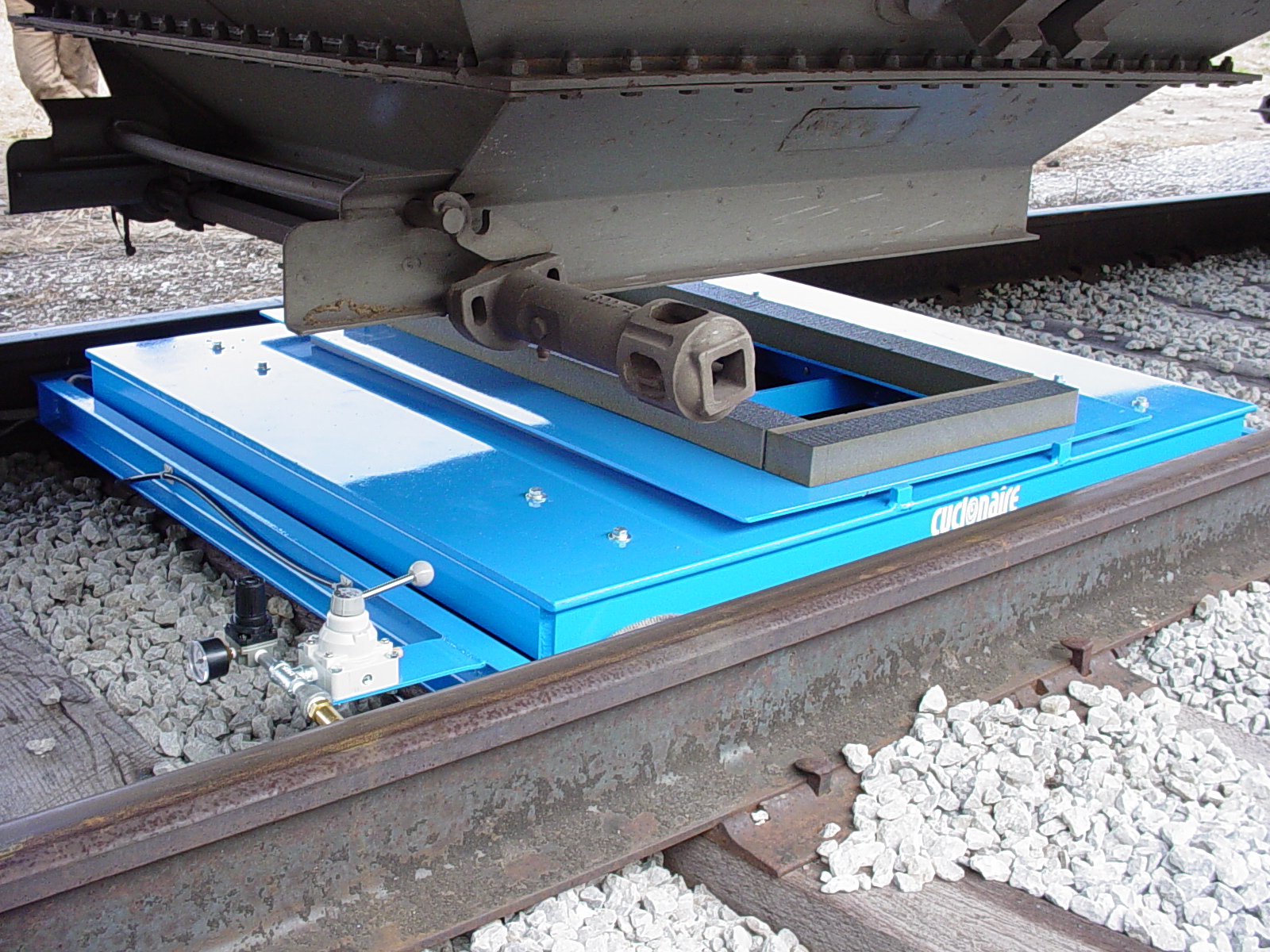

Unloading hopper bottom railcars and trucks has never been easier with Cyclonaire CycloLift connectors. CycloLift’s specifically designed connectors install easily between existing tracks to reduce time and help eliminate costly spills and cleanup. Pneumatic lifters elevate the unit as the hopper empties, maintaining a positive seal.

Standard

  • Carbon Steel
  • Basic, Jumbo and Carbon Black Configurations
  • Single Point Control Stand
  • 6″, 8″, 10″ Outlet Railpan Outlet
  • Black Flex Boot
  • Rail Adapter Plates (Standard Sizes: 13×42, 24×30, 30×30)

Standard Options

  • 304 Stainless Steel Material Contact
  • Cyclonaire White Paint
  • White Flex Boot
  • No Control Stand, Custom Adapter Plates

Custom Options

  • Custom Colors/Coatings Available
  • 316/316L Stainless Steel Material Contact
  • Custom Railpans and Outlet Adapters

Provide Fast, Safe, Positive Seal between Conveying Equipment and Covered Hopper Bottom

Accommodates a wide range of pneumatic or mechanical convey system. Industrial-grade, welded and bolted carbon steel construction. Heavy-duty, flexible reinforced rubber chute bolted to lifting framework and material pan. Square, round or rectangular custom-designed inlet to match any application. Manually-operated pneumatic control valve for raising and lowering the connector.
